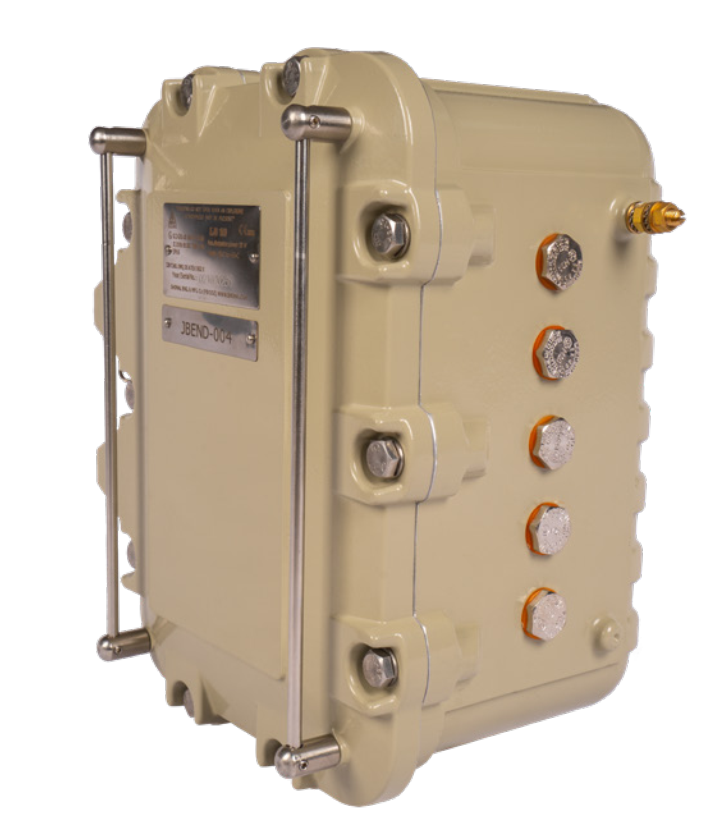

EJB 100

This product is a series of EJB enclosure intended to be used either as junction boxes with terminal only,or for installation/housing of other electrical equipment for low voltage application switchgears, within its allowed electrical rating and power dissipation limits.
The enclosure can be drilled according the schedule drawing of the manufacturer.
Body and cover made of Aluminum alloy the bolts and nuts and screws are in stainless steel.
.

EJB-90-1-860x1030EJB-90-1-860x1030
Material
Zone
IP Grade
Aluminium Alloy
Z-21-22-1-2
66

ساختار محصول

-

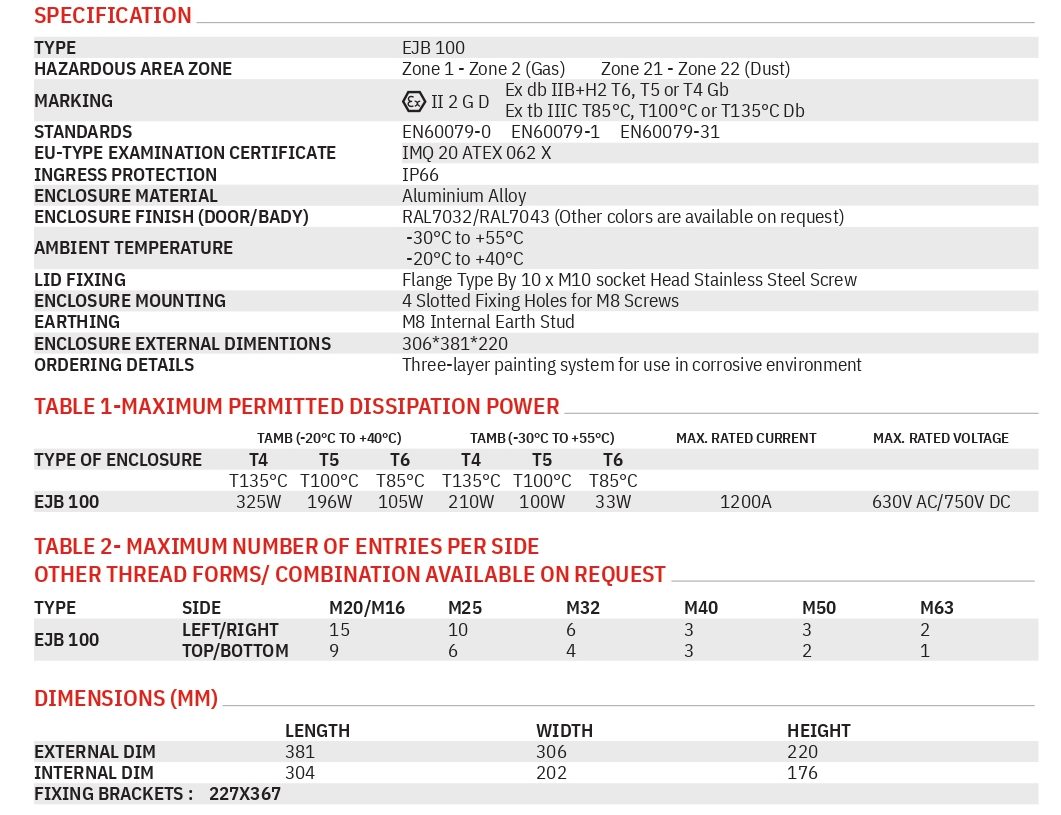

TECHNICAL DATA

describe

Title

EJB 100

Type

Flame Proof Ex d Enclosure For Control Panel

Application

Zone 1 – Zone 2 (Gas)

Zone 21 - Zone 22(Dust)

Installation
II 2 G D
Ex db IIB+H2 T6 or T5 or T4 Gb
Ex tb IIIC T85°C or T100°C or T135°C Db

Marking
EN60079-0:2012+A11:2013 EN60079-1:2014 EN60079-31:2014

Standards

IMQ 20 ATEX 062 X



EU-Type Examination Certificate

IP 66

Degree Protection
-30°C to +55°C-20°C to +40°C

Ambient Temperature

Aluminium Alloy

Enclosure Material

Painting to Customer Application

Enclosure Finish

Flange Type By 10 x M10 Socket Head Stainless Steel Screw

Lid Fixing

4 Slotted Fixing Holes For (M8) Screws

Enclosure Mounting

M5 External / M8 Internal Earth Stud

Earthing

17.5 Kg

Empty Enclosure Weight

277*378*220

Enclosure External Dimensions
