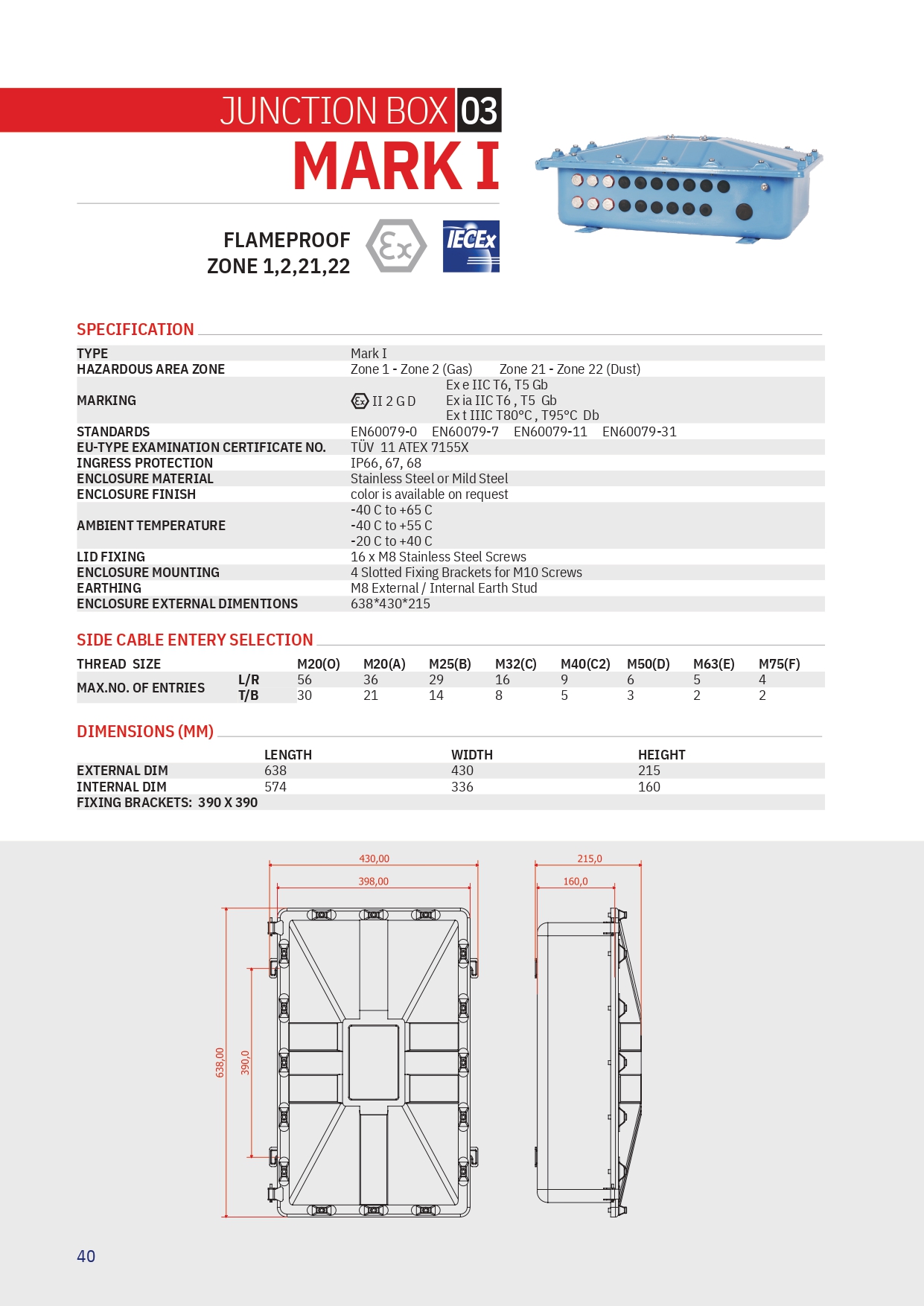

MARK I

-

-

Mark I (1)Mark I (1)
Mark I (2)Mark I (2)
Mark I (4)Mark I (4)
Mark I (5)Mark I (5)
Material
Zone
IP Grade
Stainless Steel or Mild Steel
Z-21-22-1-2
66-67-68

ساختار محصول

-

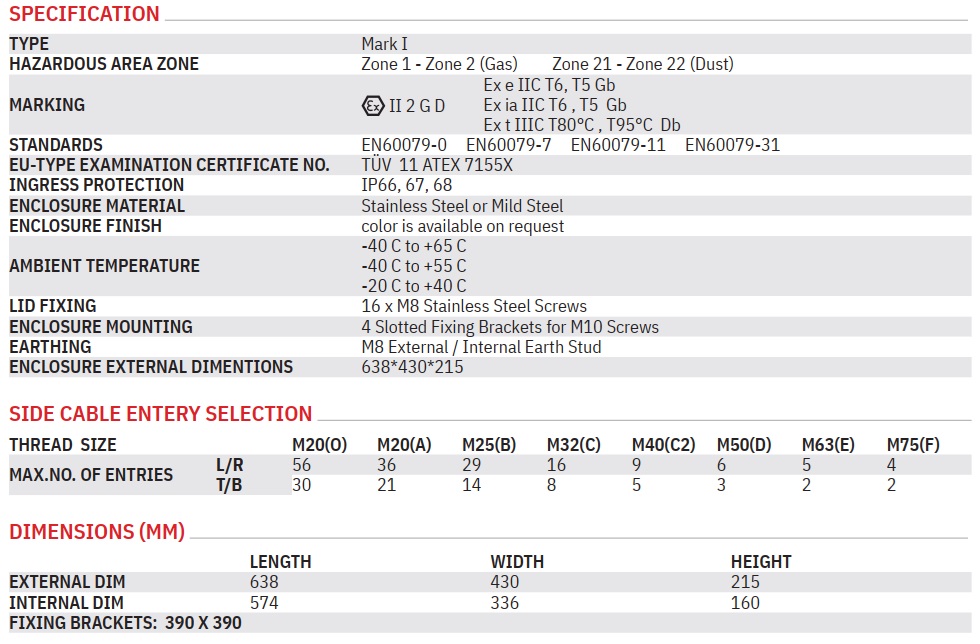

TECHNICAL DATA

describe

Title

MARK I

Type

Increased Safety Ex e Enclosure

Application

Zone 1 – Zone 2 (Gas)

Zone 21 - Zone 22(Dust)

Installation

II 2 G DEx eb IIC T6 , T5 Gb
Ex ia IIC T6 , T5 Gb
Ex tb IIIC T85°C , T100°C Db





Marking

EN60079-0 EN60079-7EN60079-11EN60079-31

Standards

TÜV 11 ATEX 7155 X

EU-Type Examination Certificate

IP 66,67,68

Degree Protection

-40°C to +65°C-40°C to +55°C-20°C to +40°C

Ambient Temperature

Stainless Steel or Mild Steel

Enclosure Material

Painting to Customer Application

Enclosure Finish

16 x M8 Stainless Steel Screws

Lid Fixing

4 Slotted Fixing Brackets for M10 Screws

Enclosure Mounting

M6,M8,M10 or M12 External / Internal Earth Stud

Earthing

17.1 Kg

Empty Enclosure Weight

638*430*215

Enclosure External Dimensions
