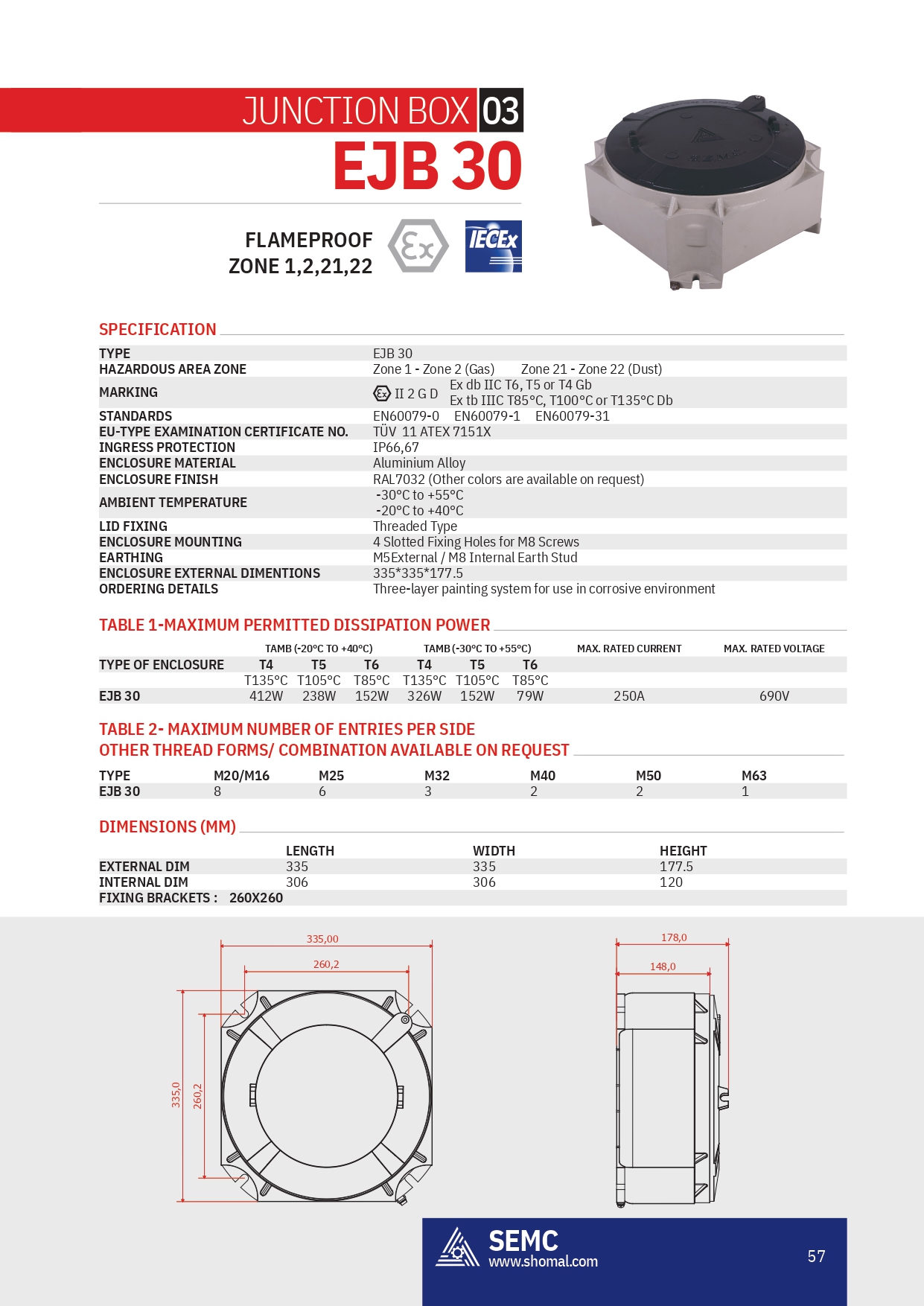

EJB 30

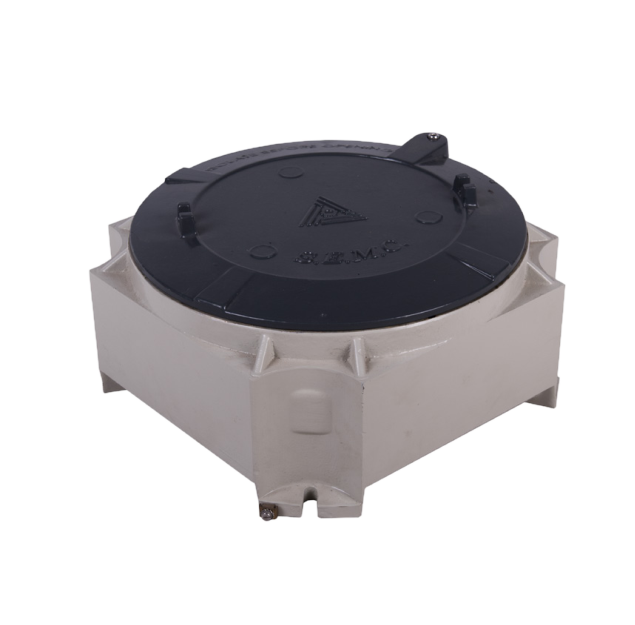

General product information The EJB Range of Enclosures compromise a base and screw cover, both manufactured in aluminium. A socket head screw provides the means of preventing loosening between the cover and base. The enclosures are manufactured in three sizes, designated as Type EJB10, EJB20 and EJB30 enclosures. The enclosures walls are provided with threaded entries for the connection of external cables. Internally, the enclosure is provided witch a baseboard for the mounting of electrical parts. The enclosure is provided with internal and external earthing facilities.
![EJB-30-1](https://shomal.com/wp-content/uploads/2024/05/EJB-30-1.jpg)
![EJB-30-1](https://shomal.com/wp-content/uploads/2024/05/EJB-30-1-150x150.jpg)
![_MG_0074](https://shomal.com/wp-content/uploads/2024/05/MG_0074-1024x683.jpg)
![_MG_0074](https://shomal.com/wp-content/uploads/2024/05/MG_0074-150x150.jpg)
Material | Zone | IP Grade |
---|---|---|
Aluminium Alloy | Z-21-22-1-2 | 66,67 |
ساختار محصول
-

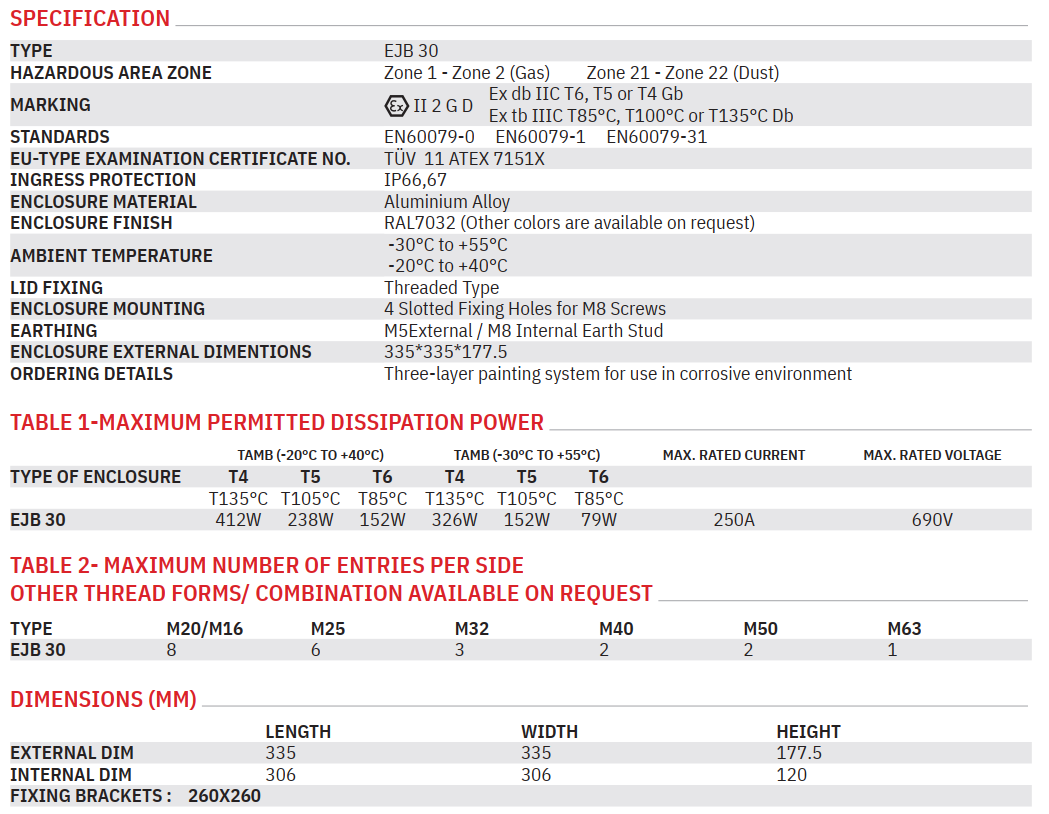

TECHNICAL DATA
describe |
Title |
|||
---|---|---|---|---|
EJB 30 |
Type |
|||
Flame Proof Ex d Enclosure |
Application |
|||
|
Installation |
|||
|
Marking |
|||
|
Standards |
|||
|
EU-Type Examination Certificate |
|||
IP 66,67 |
Degree Protection |
|||
|
Ambient Temperature |
|||
Aluminium Alloy |
Enclosure Material |
|||
Painting to Customer Application |
Enclosure Finish |
|||
Threaded Type |
Lid Fixing |
|||
4 Slotted Fixing Holes For (M8) Screws |
Enclosure Mounting |
|||
M5 External / M8 Internal Earth Stud |
Earthing |
|||
16.6 Kg |
Empty Enclosure Weight |
|||
335*335*178 |
Enclosure External Dimensions |
