RE 125A

The socket series RE… and plug series PL… are made of aluminium. The socket is for fixed installation and manufactured in 3 sizes for rated current of 16A, 32A and 63A. The RE… series of socket outlets are provided by interlock mechanism, in such a way that the plug can be inserted when internal switch is off and cannot be removed when the internal switch is on. The RE… series of socket outlet are composed of a body incorporating two threaded cable/conduit entries, a threaded cover and a coupling which contains the insulated socket with corresponding pins for various configuration.

The PL… series of plugs is composed of a cylindrical body having one threaded cable entry for cable connection by means of a cable gland, and an engagement ring with gasket is located on the plug for guarantee the mechanical coupling with the socked once inserted. When the plug inserted the first pin making connection to the socket is the earth pin, when the plug is withdrawn the last pin making contact is the earth pin, this assembly arrangement ensures an always ground connection.

socket63-125socket63-125
Material
Zone
IP Grade
Aluminium Alloy
Z-21-22-1-2
66

ساختار محصول

-

TECHNICAL DATA

describe

Title

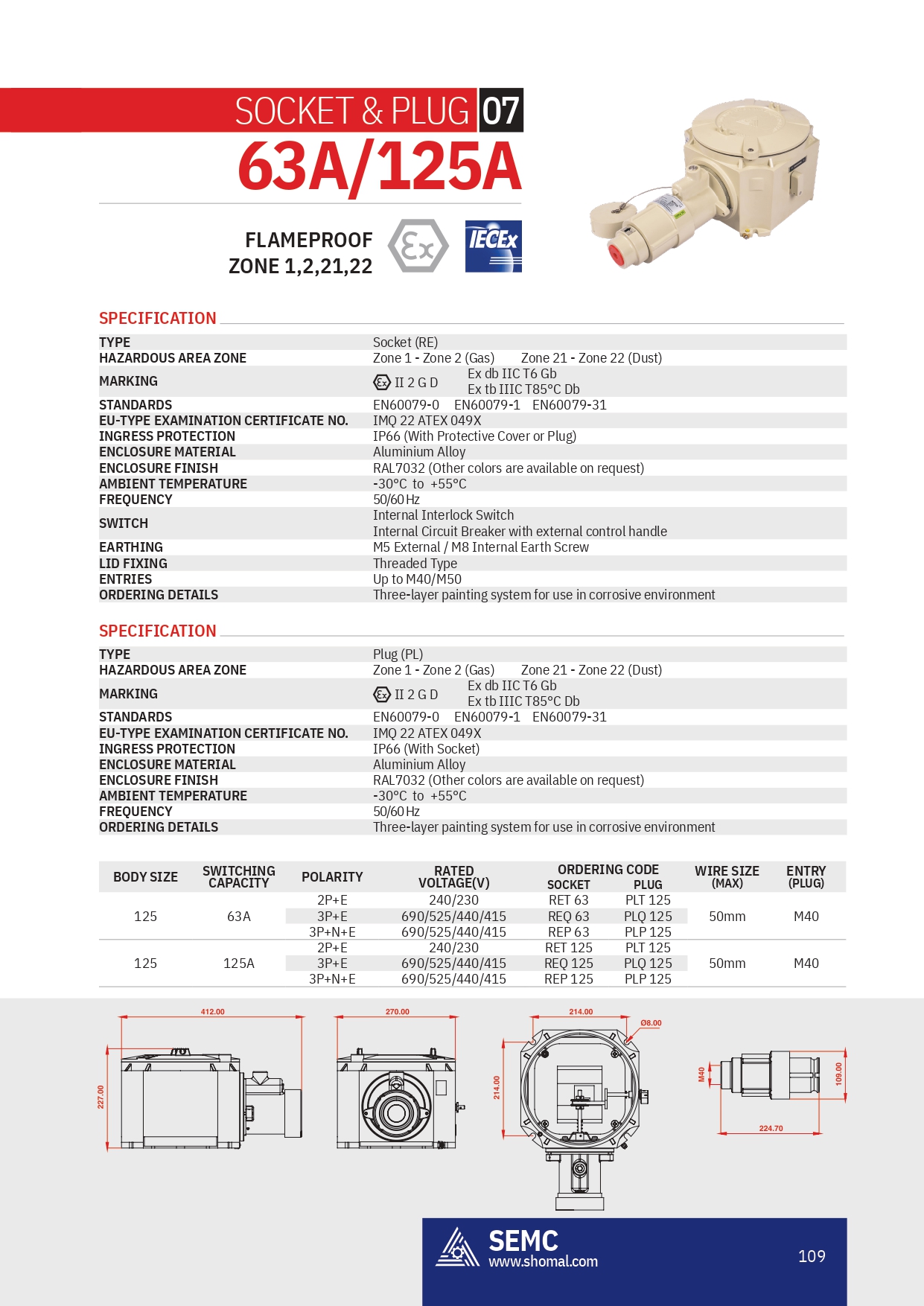

RE 125A

Type

Flame Proof Ex d Socket Outlet

Application

Zone 1 – Zone 2 (Gas)

Zone 21 - Zone 22(Dust)

Installation

II 2 G D
Ex db IIC T6 Gb
Ex tb IIIC T85°C Db

Marking

EN60079-0 EN60079-1 EN60079-31

Standards

IMQ 22 ATEX 049X

EU-Type Examination Certificate

IP 66

Degree Protection

-30°C to +55°C

Ambient Temperature

Up to 690V

Rated Voltage

Max. 125 A

Rated Current

50/60 Hz

Frequency

2P+PE or 3P+PE or 3P+N+PE

Arrangement

50 mm2

Wire Size

Aluminium Alloy

Enclosure Material

Painting to Customer Application

Enclosure Finish

Threaded Type

Lid Fixing

4 Slotted Fixing Holes For (M8) Screws

Enclosure Mounting

Up to M40/M50

Entries

M5 External / M8 Internal Earth Screw

Earthing

14.5 Kg

Empty Enclosure Weight

416*290*227

Enclosure External Dimensions
