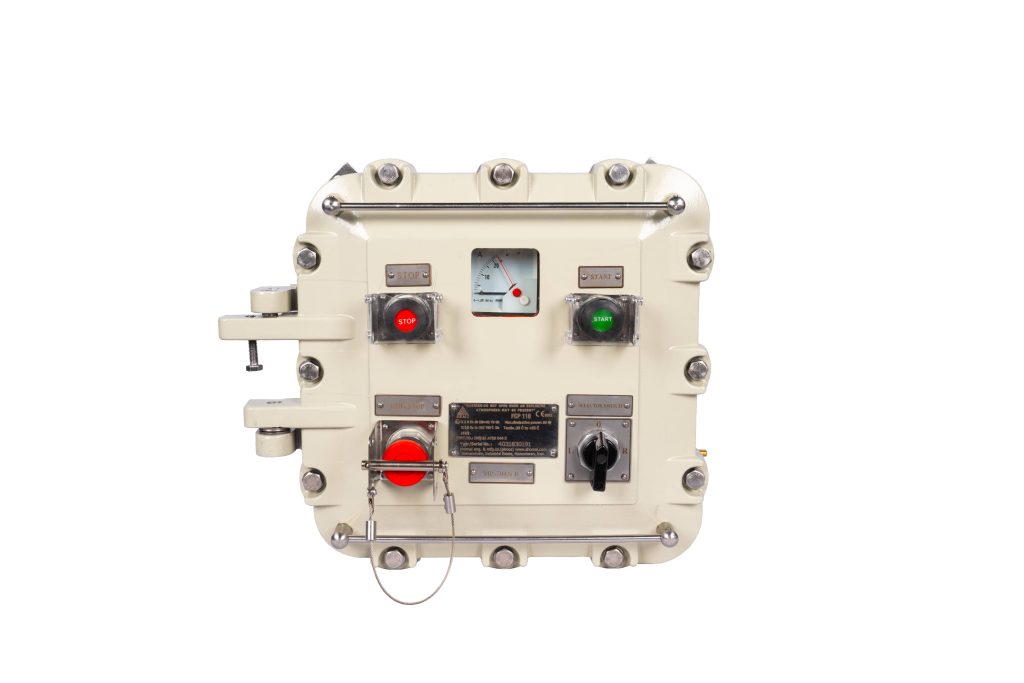

FCP 110

This product is a full range of control panel with different box size with installed signal lamps with model CS.*.*.*.*, push button with model CP.*.*.*.*, stay put push button with model CSP.*.*.*.*, small rotary with model CSR.*.*.*.*, big rotary with model CBR.*.*.*.*, small window or framed window with model CSW and large window or framed window with model CLW, according to the manufacturer technical file description and drawings.
This product could be used for installation/housing of other electrical equipment for low voltage application switchgears, within its allowed electrical rating and power dissipation limits. These components are totally housed inside control panel.
The enclosure can be drilled according the schedule drawing of the manufacturer.
Body and cover made of Aluminum alloy the bolts and nuts and screws are in stainless steel.

fcp-120-2-687x1030fcp-120-2-687x1030
Material
Zone
IP Grade
Aluminium Alloy
Z-21-22-1-2
66

ساختار محصول

-

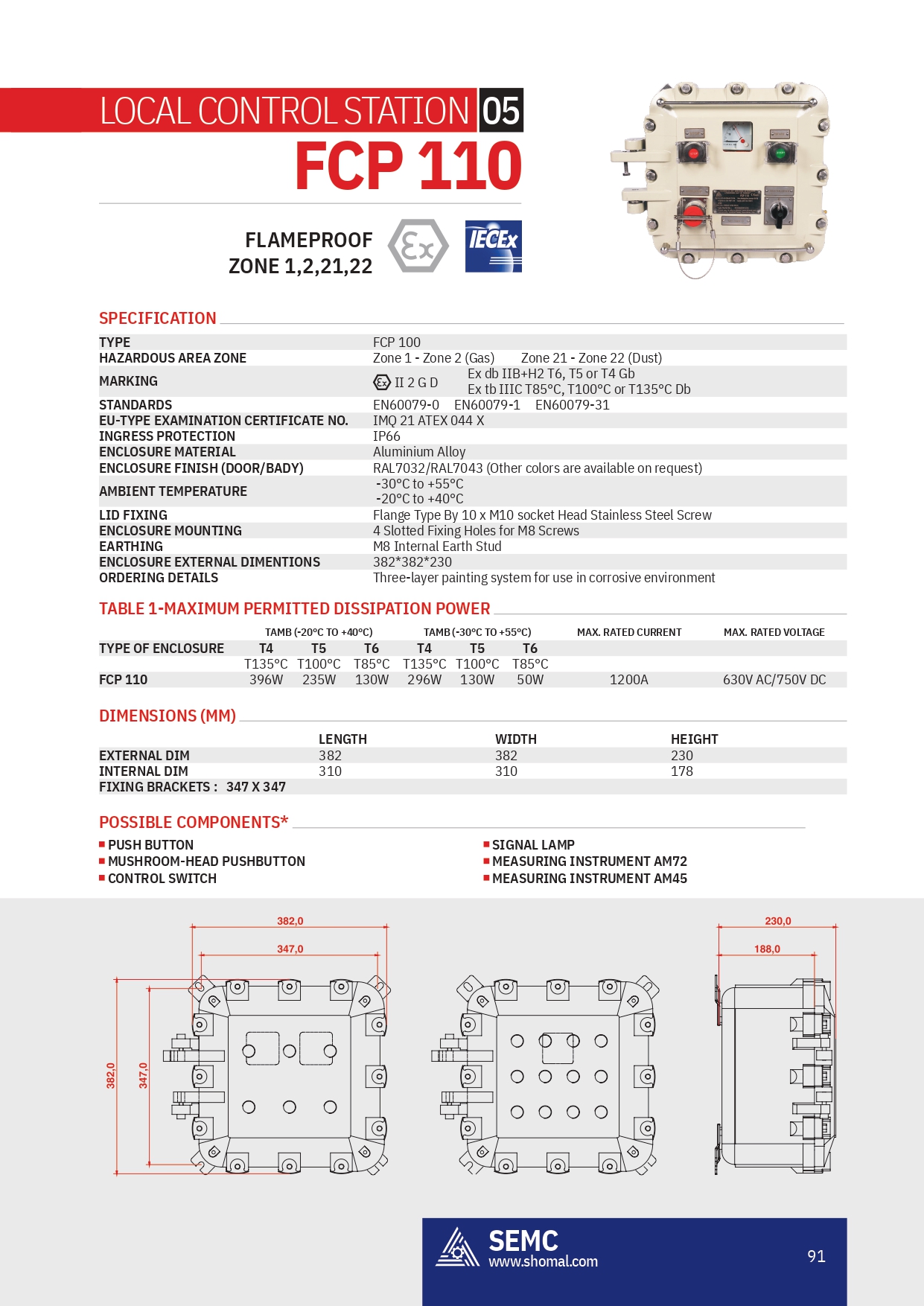

TECHNICAL DATA

describe

Title

FCP 110

Type

Flame Proof Ex d Full Control Panel

Application

Zone 1 – Zone 2 (Gas)

Zone 21 - Zone 22(Dust)

Installation

II 2 G D
Ex db IIB+H2 T6 or T5 or T4 Gb
Ex tb IIIC T85°C or T100°C or T135°C Db

Marking

EN60079-0 EN60079-1EN60079-31

Standards

IMQ 21 ATEX 044 X

EU-Type Examination Certificate

IP 66

Degree Protection

-30°C to +55°C-20°C to +40°C

Ambient Temperature

630 V AC ; 750 V DC

Rated Voltage

1200 A

Rated Current

Aluminium Alloy

Enclosure Material

Painting to Customer Application

Enclosure Finish

Flange Type By 12 x M10 Socket Head Stainless Steel Screw

Lid Fixing

4 Slotted Fixing Holes For (M8) Screws

Enclosure Mounting

M8 External / M8 Internal Earth Stud

Earthing

25.5 Kg

Empty Enclosure Weight

382*382*228

Enclosure External Dimensions
