II 2 G D
دانلود کاتالوگ

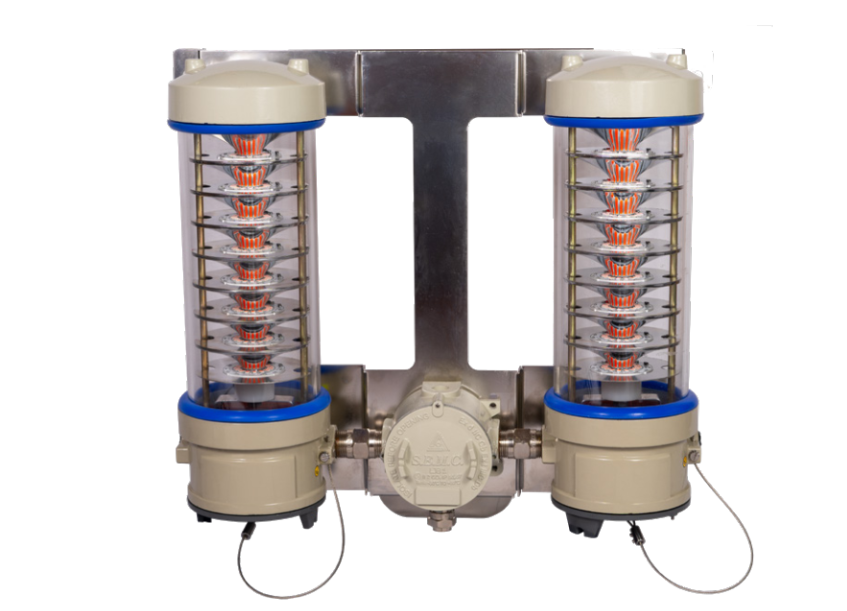

FLBA 2x LIOL
Material | Zone | IP Grade |
|---|---|---|
Borosilicate Glass | 1-2-21-22 | 66 |
ساختار محصول
-

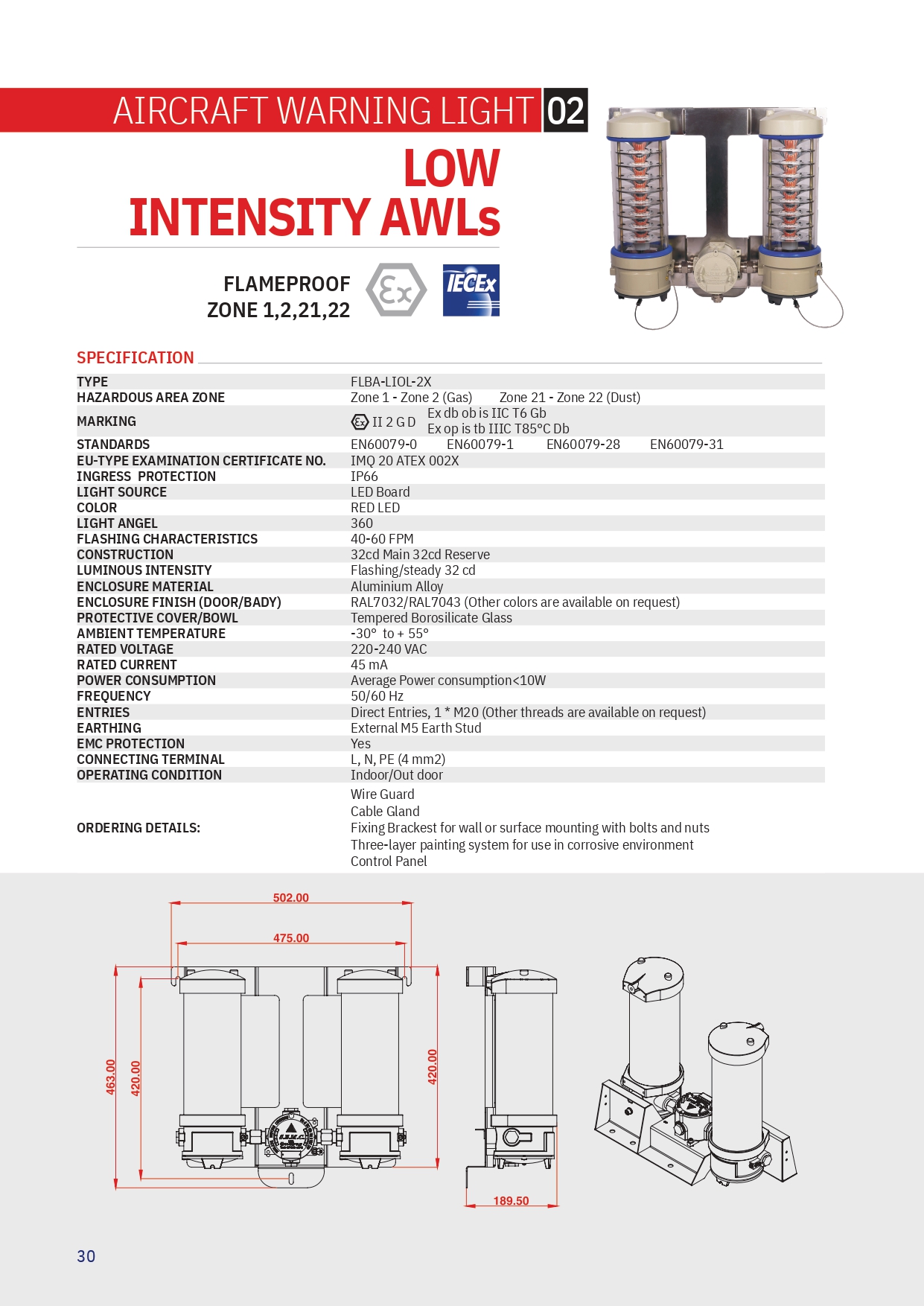

TECHNICAL DATA
|
describe |
Title |
|||
|---|---|---|---|---|
| FLBA-LIOL-2X |
Type |
|||
| LED Ex Luminaire - Air Craft warning light fixture |
Application |
|||
| Indoor/Out door | Operating Condition | |||
|
Installation |
|||
|
Marking |
|||
| EN60079-0 EN60079-1 EN60079-28 EN60079-31 |
Standards |
|||
|
IMQ 20 ATEX 002X |
EU-Type Examination Certificate |
|||
|
IP 66 |
Degree Protection |
|||
|
Ambient Temperature |
|||
| 180~260 VAC ( 24VDC/AC ON Request ) |
Rated Voltage |
|||
| Average Power consumption<20W (100W Impulse ON 35mS ) | Power Consumption | |||
|
50/60 Hz |
Frequency |
|||
|
100 mA |
Rated Current | |||
|
Yes |
EMC Protection | |||
|
2.5 KV |
|
|||
| Borosilicate Glass | Protective Cover/Bowl | |||
| Grey RAL 7032 (Body), RAL 7043 (Cover) | Enclosure Color | |||
| External M5 Earth Stud | Earthing | |||
| Direct Entries, 1*M20 (Other threads are available on request by adaptor) |
Entries |
|||
| 2*Slotted Fixing Brackets with necessary M6 bolts and nuts (Other mounting brackets are available on request) | Mounting Type | |||
| Flashing/steady 32 cd | Luminous intensity | |||
| MODULAR LED Board | Light Source | |||
| RED LED | Color | |||
|
360 |
Light Angel | |||
|
40-60 FPM |
Flashing Characteristics | |||
|
Direct connection to terminal ( L, N, PE ) - 4 mm2 |
Connecting Terminal | |||
|
0.8 S |
Starting Time (at 230 V, 50 Hz) | |||
|
100.000 Hours |
Lifetime |
|||
| 32cd Main /32cd Reserve | Construction |
