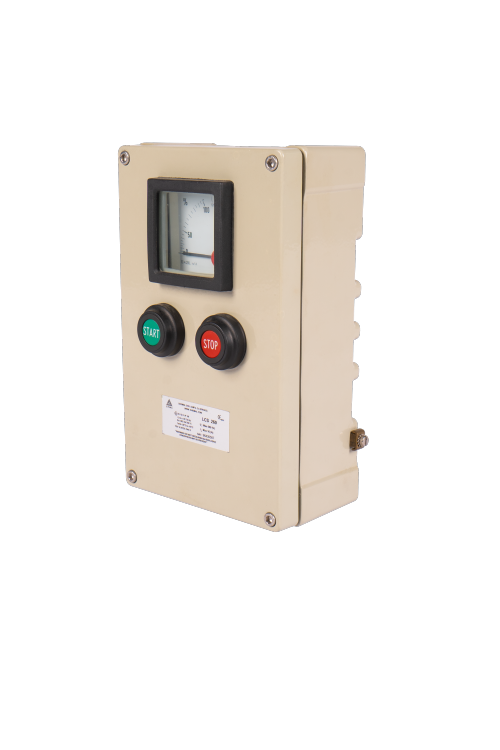

LCS 260

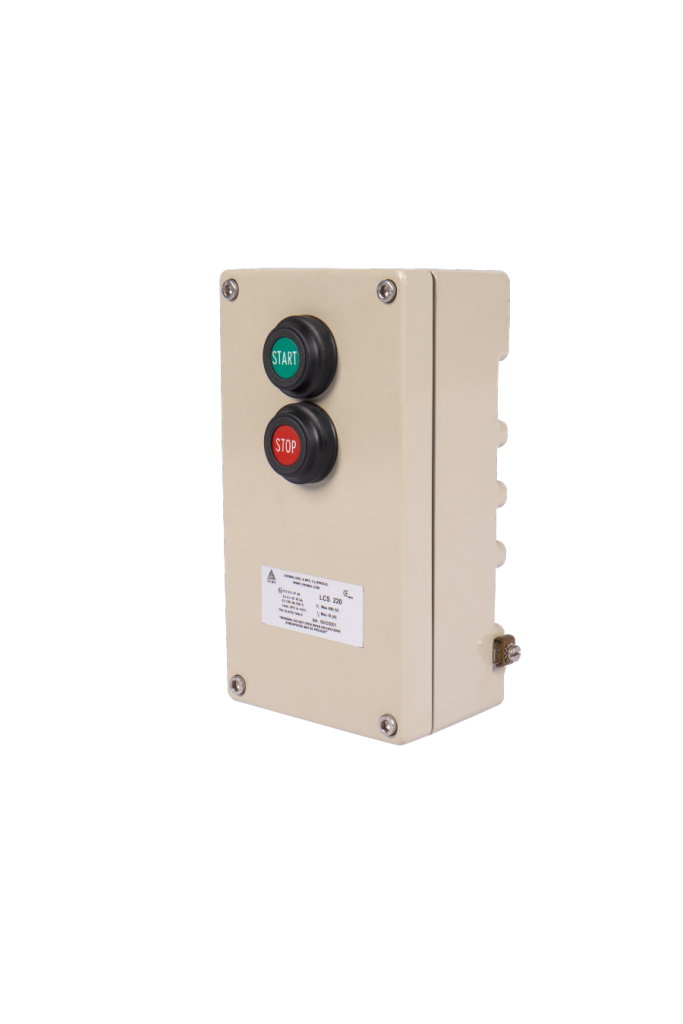

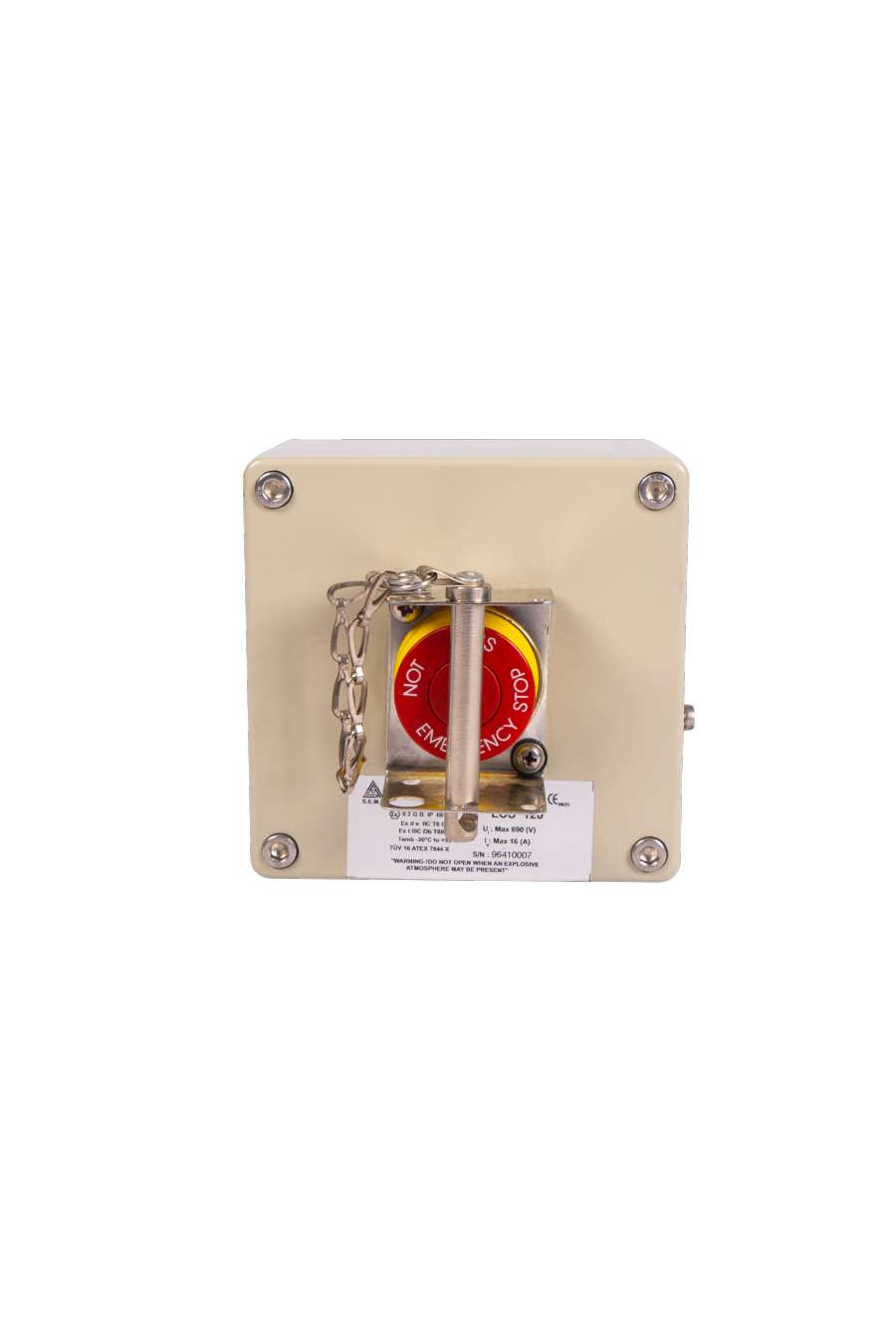

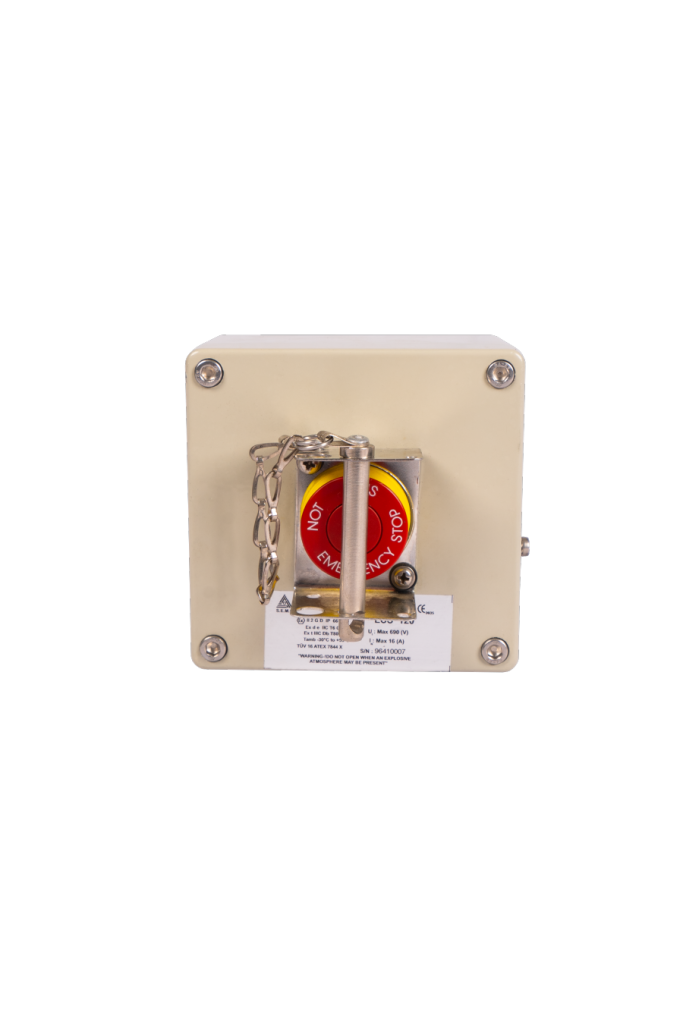

The control unit types, LCS120, 220 and 260, consist of an aluminum enclosure certified to type of protection increased safety "e" and dust protection "t". It is designed to accommodate control and signaling elements as well as measuring instruments and terminals for intrinsically safe and non-intrinsically safe circuits. And enclosure covers are designed for maximum two or four or nine control/signal/measuring elements for each size of enclosures. All installed and attached components have been tested and certified under separate EU/EC certificate of conformity. Connection to enclosures is by means of explosion proof cable and conduit entries (according to enclosure certificate). Several of these enclosures may be connected in series by suitable certified flameproof unions/bushings. All 3 variants are suitable for permanent/fixed installation inside hazardous area, depending on the type of protection and equipment level of apparatuses installed; it can be operated as category "2" equipment and under appropriate marking stated in this certificate.

LCS260LCS260
Material
Zone
IP Grade
Aluminium Alloy
Z-21-22-1-2
66

ساختار محصول

-

TECHNICAL DATA

describe

Title

LCS 260

Type

Ex Local Control Station

Application

Zone 1 – Zone 2 (Gas)

Zone 21 - Zone 22(Dust)

Installation

II 2 G D
Ex db eb ib mb IIC T6 Gb
Ex tb IIIC T85°C Db

Marking

EN60079-0,EN60079-1,EN60079-7,EN60079-11,EN60079-18,EN60079-31

Standards

TÜV 16 ATEX 7844 X

EU-Type Examination Certificate

IP 66

Degree Protection

-30°C to +55°C-20°C to +40°C

Ambient Temperature

Max. 690 V

Rated Voltage

Max. 16 A

Rated Current

Aluminium Alloy

Enclosure Material

Painting to Customer Application

Enclosure Finish

4 x M6 Stainless Steel Screws

Lid Fixing

4 Holes for M6 Screws

Enclosure Mounting

M5 External / M6 Internal Earth Stud

Earthing

2.3 Kg

Empty Enclosure Weight

260*160*90

Enclosure External Dimensions
