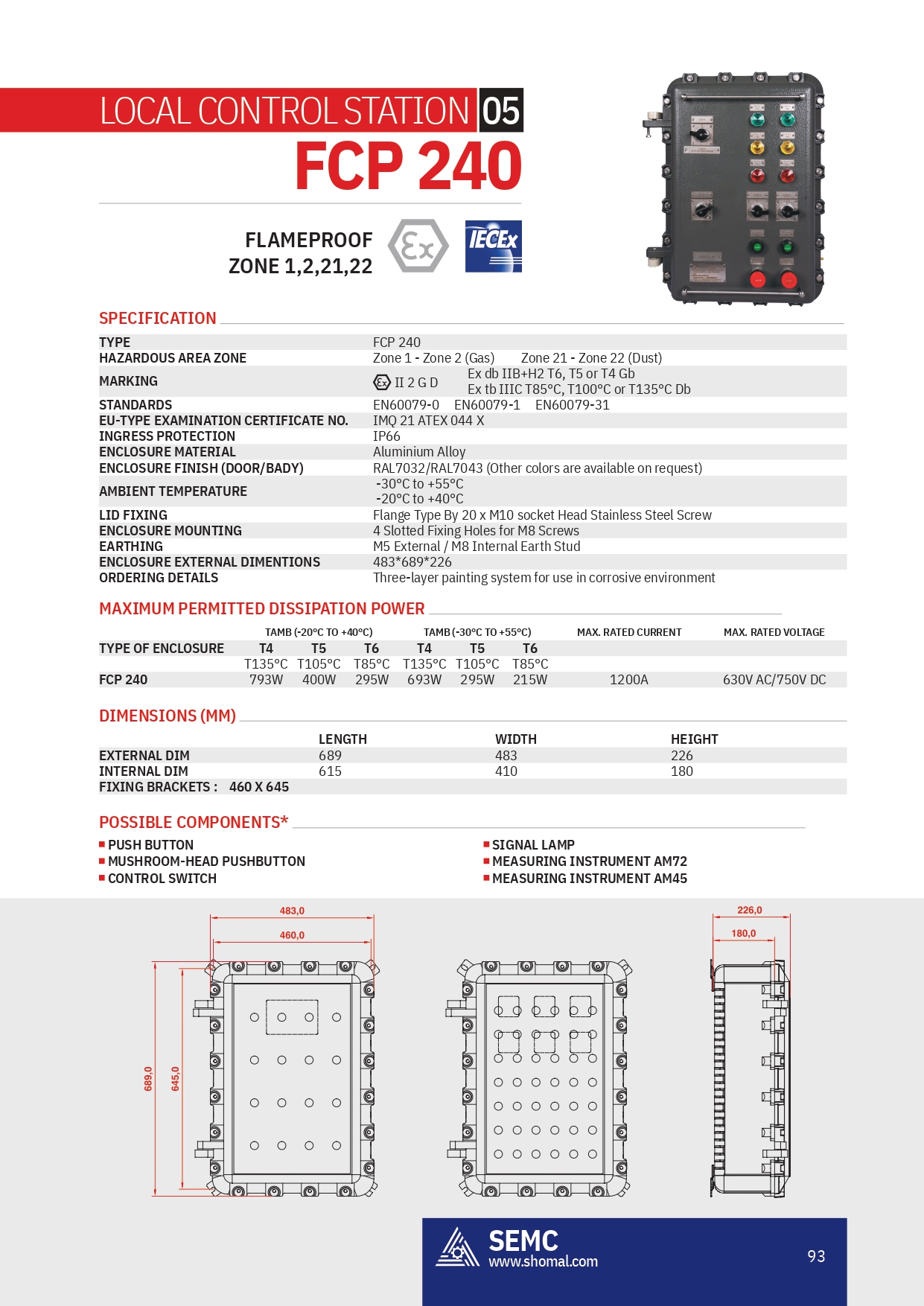

FCP 240
This product is a full range of control panel with different box size with installed signal lamps with model CS.*.*.*.*, push button with model CP.*.*.*.*, stay put push button with model CSP.*.*.*.*, small rotary with model CSR.*.*.*.*, big rotary with model CBR.*.*.*.*, small window or framed window with model CSW and large window or framed window with model CLW, according to the manufacturer technical file description and drawings.
This product could be used for installation/housing of other electrical equipment for low voltage application switchgears, within its allowed electrical rating and power dissipation limits. These components are totally housed inside control panel.
The enclosure can be drilled according the schedule drawing of the manufacturer.
Body and cover made of Aluminum alloy the bolts and nuts and screws are in stainless steel.
Material | Zone | IP Grade |
---|---|---|
Aluminium Alloy | Z-21-22-1-2 | 66 |
ساختار محصول
-
TECHNICAL DATA
describe |
Title |
|||
---|---|---|---|---|
FCP 240 |
Type |
|||
Flame Proof Ex d Full Control Panel |
Application |
|||
|
Installation |
|||
|
Marking |
|||
|
Standards |
|||
IMQ 21 ATEX 044 X |
EU-Type Examination Certificate |
|||
IP 66 |
Degree Protection |
|||
|
Ambient Temperature |
|||
630 V AC ; 750 V DC |
Rated Voltage |
|||
1200 A |
Rated Current |
|||
Aluminium Alloy |
Enclosure Material |
|||
Painting to Customer Application |
Enclosure Finish |
|||
Flange Type By 20 x M10 Socket Head Stainless Steel Screw |
Lid Fixing |
|||
4 Slotted Fixing Holes For (M8) Screws |
Enclosure Mounting |
|||
M8 External / M8 Internal Earth Stud |
Earthing |
|||
57.1 Kg |
Empty Enclosure Weight |
|||
483*689*224 |
Enclosure External Dimensions |
