II 2 G D
دانلود کاتالوگ

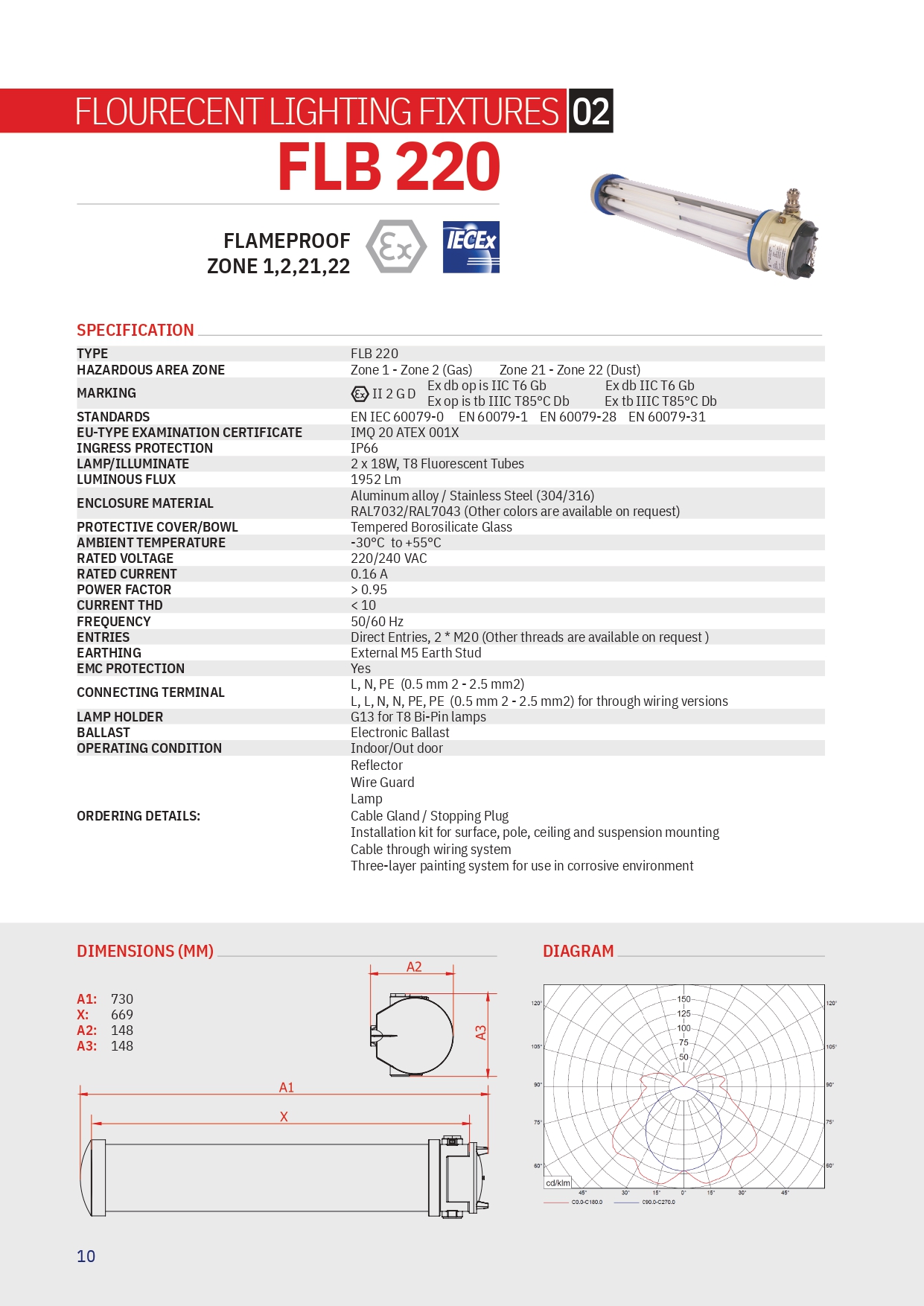

FLB 220(Fluorescent source type)
Material | Zone | IP Grade |
|---|---|---|
Borosilicate Glass | 1-2-21-22 | 66 |
ساختار محصول
-
TECHNICAL DATA
|
describe |
Title |
|||
|---|---|---|---|---|
|
FLB 220 |
Type |
|||
| Flame Proof Lighting Fixture |
Application |
|||
| Indoor/Out door | Operating Condition | |||
|
Installation |
|||
|
Marking |
|||
| EN60079-0 EN60079-1 EN60079-31 |
Standards |
|||
| IMQ 20 ATEX 001X |
EU-Type Examination Certificate |
|||
|
IP 66 |
Ingress Protection | |||
|
Ambient Temperature |
|||
| 220/240 VAC |
Rated Voltage |
|||
|
36 W |
Power Consumption | |||
|
50/60 Hz |
Frequency |
|||
|
0.16 A |
Rated Current | |||
|
Yes |
EMC Protection | |||
|
2.5 KV |
|
|||
|
> 0.95 |
Power Factor | |||
| Borosilicate Glass | Protective Cover/Bowl | |||
| Grey RAL 7032 (Body), RAL 7043 (Cover) | Enclosure Color | |||
| External M5 Earth Stud | Earthing | |||
| Direct Entries, 2* M20 (Other threads are available on request ) |
Entries |
|||
| Galvanized steel pole mounting bracket suitable for pipe 1 ½ with necessary galvanized steel bolts and nuts (Other mounting brackets are available on request) | Mounting Type | |||
| T8 Bi-Pin Fluorescent Tubes | Light Source (LAMP) | |||
| Electronic Ballast (EEI A2) | Light Source (Ballast) | |||
| SERIES 166ST/BU ( L, N, PE ) 0.5 mm2 - 2.5 mm2 3 pole 16A single plugs & sockets | Connecting Terminal | |||
|
1.8 S |
Starting Time (at 230 V, 50 Hz) | |||
| G13: for T8 Bi-Pin lamps according to IEC 60081 | Lamp Cap |
